ALMR100

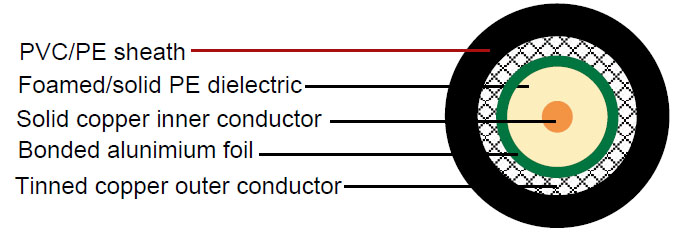

Construction :

  • Inner conductor Solid copper 0.46 mm
    Dielectric Foam /Solid PE Φ1.52 mm
    Shield Bonded aluminium foil Φ1.65 mm
    Outer conductor Tinned copper braid Φ2.11 mm
    Sheath PVC/PE Φ2.79 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 101.1 pF/m
    Velocity of propagation 70%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 266 Ohm/Km
    Outer conductor resistance 31.2 Ohm/Km
    Operating temperature range -40°C - +85 °C
    Min.bending radius 14 mm

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft)
    30 12.9 3.9
    50 16.7 5.1
    150 29.4 9.0
    220 35.8 10.9
    450 51.9 15.8
    900 74.9 22.8
    1500 98.7 30.1
    1800 109.0 33.2
    2000 115.5 35.2
    2500 130.6 39.8
    3000 143.8 43.8
    5800 210.3 64.1
